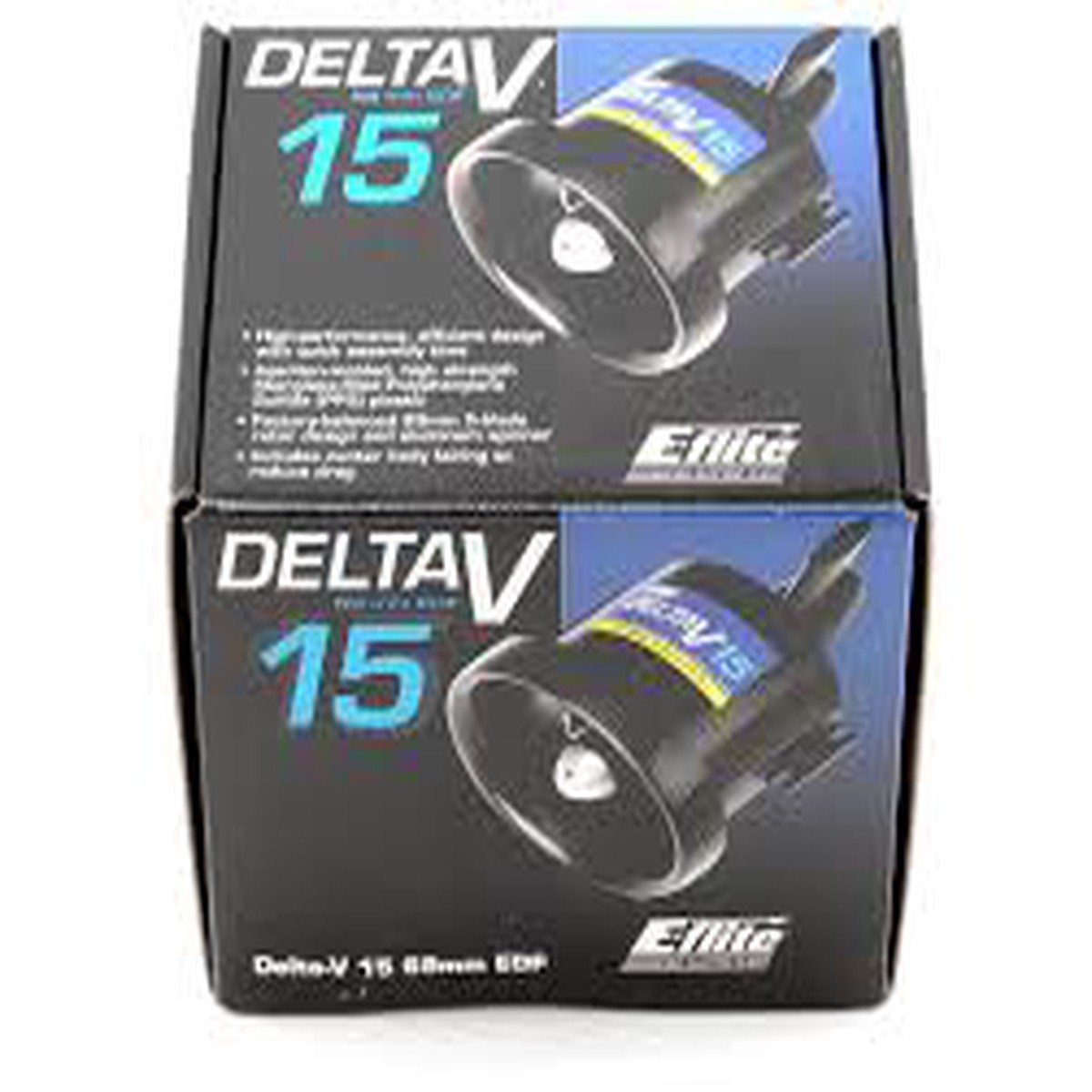

E-flite Delta-V 15 69mm EDF Unit Z-EFLDF15

E-flite Delta-V 15 69mm EDF Unit Z-EFLDF15

KEY FEATURES

• High-performance, efficient design with quick assembly time
• Injection molded, high strength fiberglass-filled Polyphenylene Sulfide [PPS] plastic
• Factory-balanced 69mm 5-blade rotor design and aluminum spinner
• Includes center body fairing to reduce drag
• Designed for 3S-4S Li-Po batteries
• Can accept motors with 28mm diameter
• Purpose-built for recommended E-flite BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF)

OVERVIEW

E-flite’s Delta-V 15 69mm EDF (EFLDF15) electric ducted fan unit is an ideal choice for products such as E-flites BAe Hawk 15 DF and other similar sized ducted fan airplanes. The Delta-V 15 69mm EDF is also an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units. The BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF) is purpose-built for this Delta-V 15 69mm EDF and both products will provide great performance.

Specifications:
Rotor Diameter:69mm (2.7 in)
Shroud Outer Diameter:73.5mm (2.9 in)
Shroud Length:58.3mm (2.3 in)
Shroud Length (Including Intake Ring):72mm (2.8 in)
Center Body Inside Diameter:28.3mm (1.1 in) designed for 28mm motor
Overall Weight:88g (3.1 oz)

Performance Data (Measured using BL15 DF Brushless Motor)

Recommended Motor:BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF)
Static Thrust:1.7 lbs on 3S (11.1V); 2.8 lbs on 4S (14.8V)
RPM:31,000 on 3S (11.1V); 40,000 on 4S (14.8V)
Velocity:71 mph on 3S (11.1V); 102 mph on 4S (14.8V)
Watts:305 on 3S (11.1V); 644 on 4S (14.8V)
Current:29A on 3S (11.1V);46A on 4S (14.8V)
