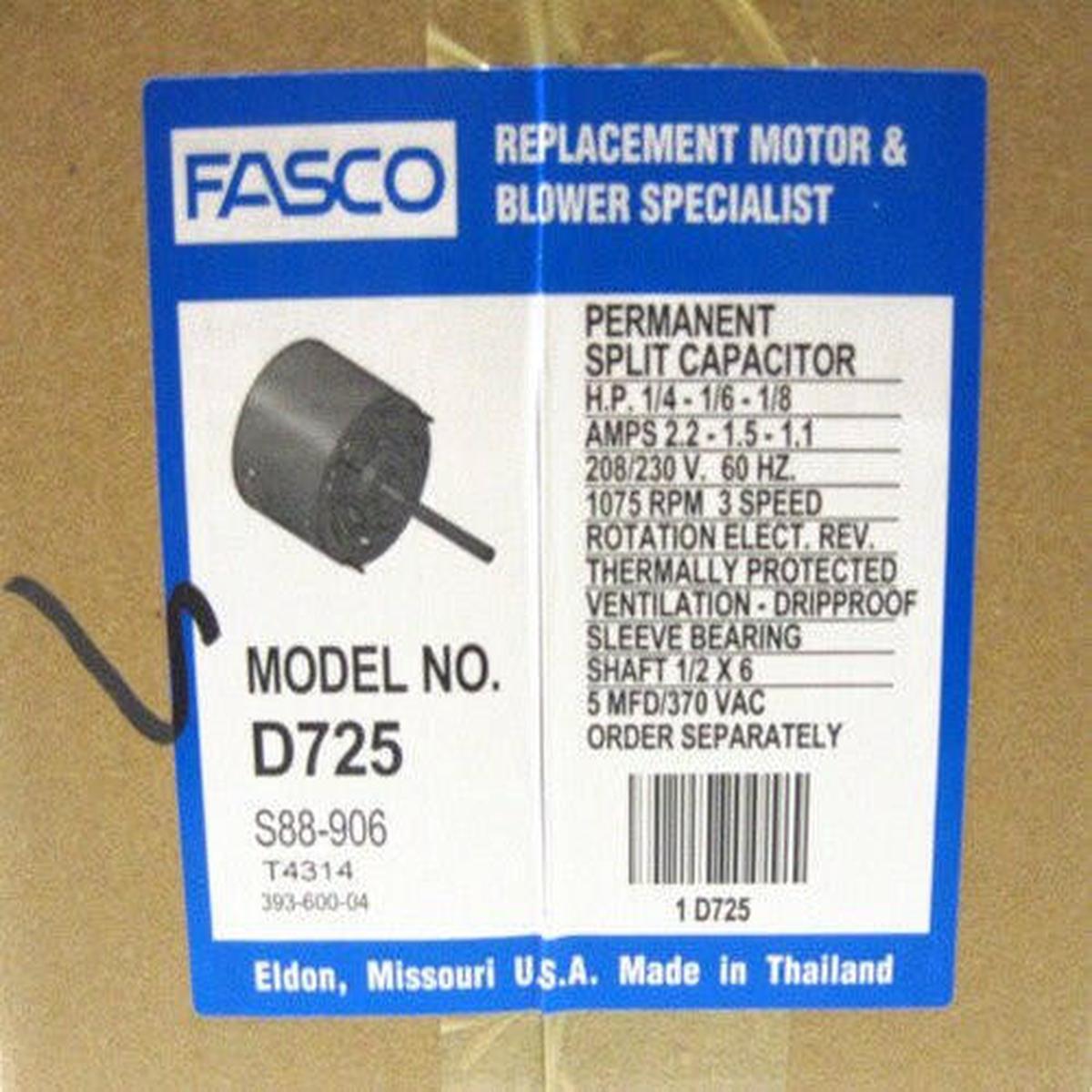

Fasco Air Handler Fan Motor D725 1/4 HP 1075 RPM 230 Volts

product-image-0
50

Fasco Air Handler Fan Motor D725 1/4 HP 1075 RPM 230 Volts

Add your Review
$59.50 $119.00

Fasco D725 Fan & Blower Motor 1075 RPM 3 Speed 208/230 Volts 48 FrameKEY FEATURESDirect Drive Fan and Blower Motor5.6"…

Category: Motors
SKU: VOD4286840425

Fasco D725 Fan & Blower Motor 1075 RPM 3 Speed 208/230 Volts 48 Frame

KEY FEATURES

  • Direct Drive Fan and Blower Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Double Flat
  • 26″ Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

UPC: 818508021256 Weight: 12.00 LB
Packaged Length: 15 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN

Nameplate Specifications

Output HP: 1/4-1/6-1/8 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 2.2-1.5-1.1 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48 Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 C
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Double Flat Frame Length: 4.21 in
Shaft Diameter: 0.500 in Shaft Extension: 5.94 in
