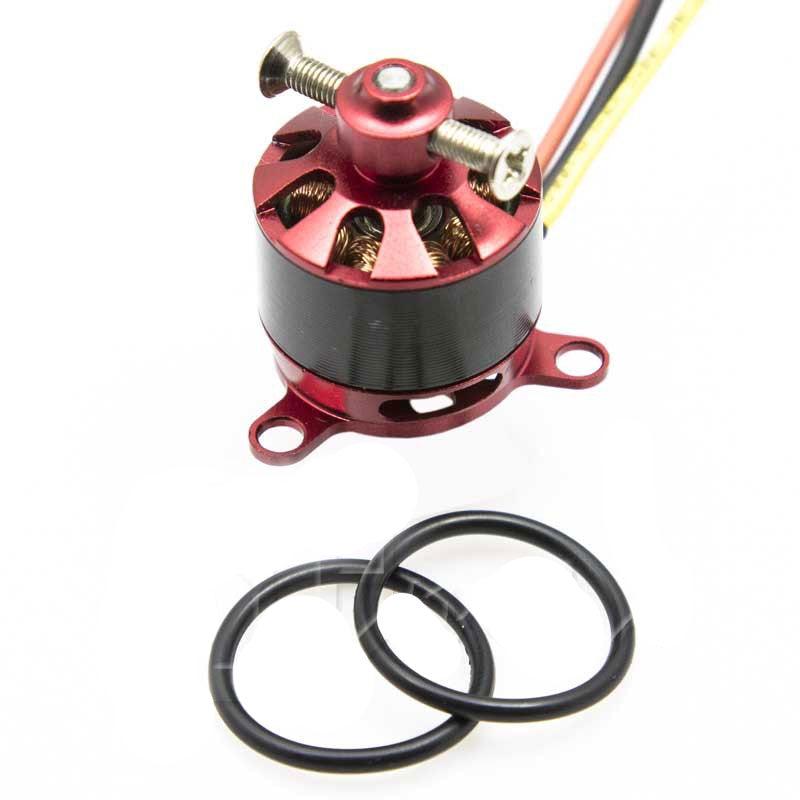

Sky Surfer V4 Brushless Motor(C2822-2140)

Sky Surfer V4 Brushless Motor (C2822-2140)

Specification:
Stator Diameter: 22.0 mm
Stator Thickness: 6.0mm
No. of Stator Arms: 12
No. of Magnet Poles: 14
Motor Wind: 9 Turn D
Motor Kv: 2140 RPM / Volt
No-Load Current (Io): 0.7 Amps @ 10 volts
Max Continuous Current: 22 Amps
Max Continuous Power: 230 Watts
Weight: 41 Grams(4.092oz)
Resistance : 69m
Outside Diameter: 27.8 mm(1.094 in)
Shaft Diameter: 4.0 mm(0.157 in)
Body Length: 3.0 mm(0.118 in)
Overall Shaft Length: 43 mm(1.686 in)
Max LiPo Cell: 2-3 S
Motor Timing: 7
Drive Frequency: 8kHz

Package Content:
1no :Avionic Skysurfer V4 brushless motor (C2822-2140)
