TechTop 1.5 HP NEMA Premium TEFC Cast Iron Motors

TechTop 1.5 HP NEMA Premium TEFC Three Phase Cast Iron Motors

Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.

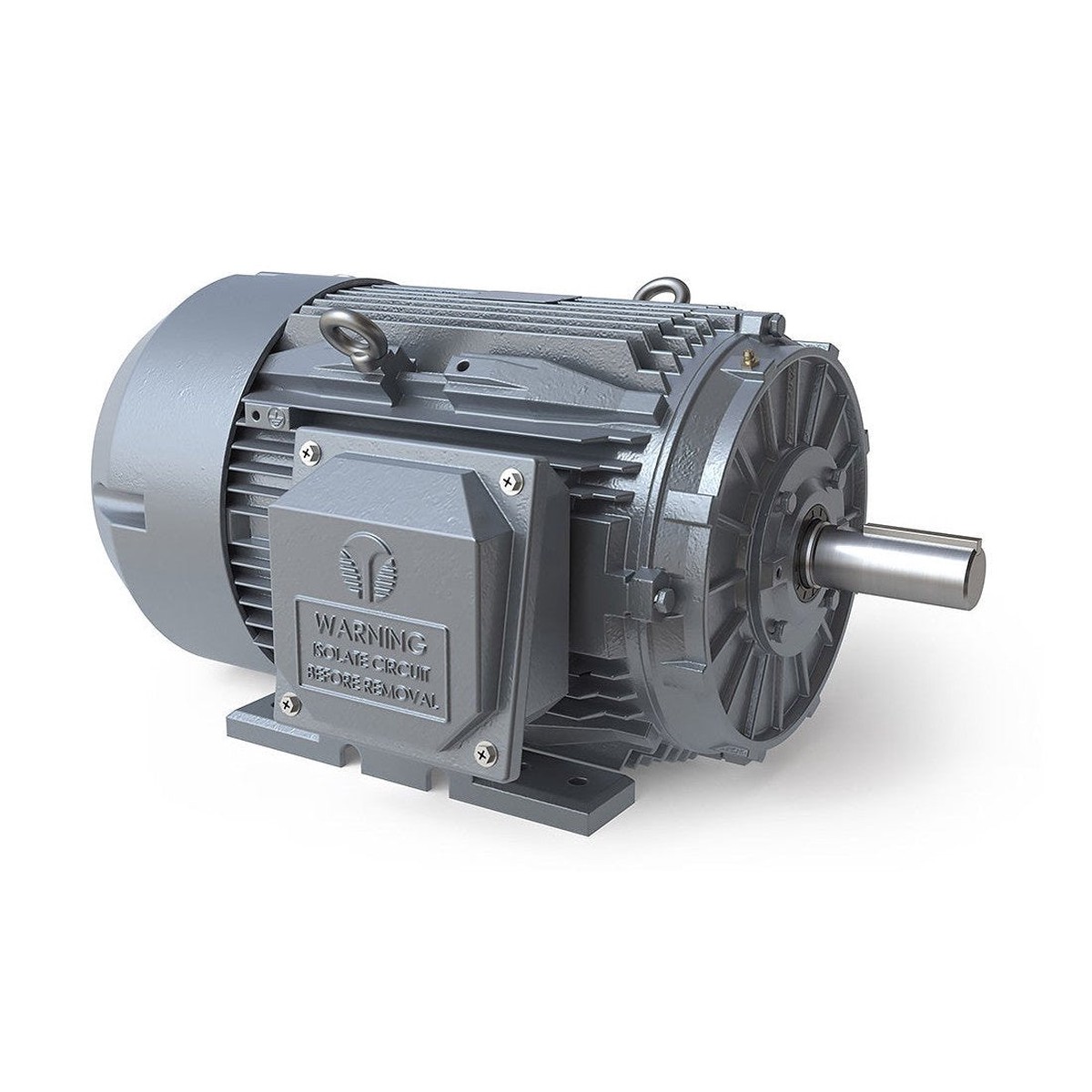

Pictured motor is an example only, product appearance may vary.

Warranty

These three phase cast iron motors come with a 36 month warranty from TechTop that starts from date of purchase.

Features

• NEMA Premium Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating – IP 55 Ingress Protection
• 1045 Steel Shaft (through 326T), 4140 (326T & up)
• Multi-mount Frame Design up to 320T (F1,F2,F0)
• Auto-purge Brass Condensation Drains
• 1.25 Service Factor to 50HP (1.15 for larger frames)
• DE and ODE Oversized Bearing Size
• Zerk fitting Regreaseable Bearings 254T & Larger
• 90 Rotatable – Full Rubber Gasket Conduit Box
• Double Lip Shaft Seal Protection on DE & ODE
• VPI -Tropicalized- Lap-wound-Class H Stator
• Heavy Duty Cast Iron Fan Cover
• Oversized-Color Coded -Tagged – Class F Leads
• Rubber Shaft Slinger for Vertical Application
• Interchangeable C & D Flanges Available
• Class 1, Div 2, Groups A, B, C & D Certified
• EISA Regulation Compliant
• 40C Ambient Temperature Rating
• 36 Month Warranty from Purchase Date

Specifications

• 1.5 HP Three Phase Cast Iron Electric Motor
• TEFC
• NEMA Premium
• Voltage: 230/460V 60HZ

Available in the following options:

Resources:

• TEFC Cast Iron Motors Catalog
