TechTop 3 HP NEMA Premium TEFC Aluminum Motors

TechTop 3 HP NEMA Premium TEFC Three Phase Aluminum Motors

Experience the power of quality and innovation with a TechTop electric motor. These motors are engineered with precision and built for durability, featuring advanced protection mechanisms to ensure long-lasting performance.

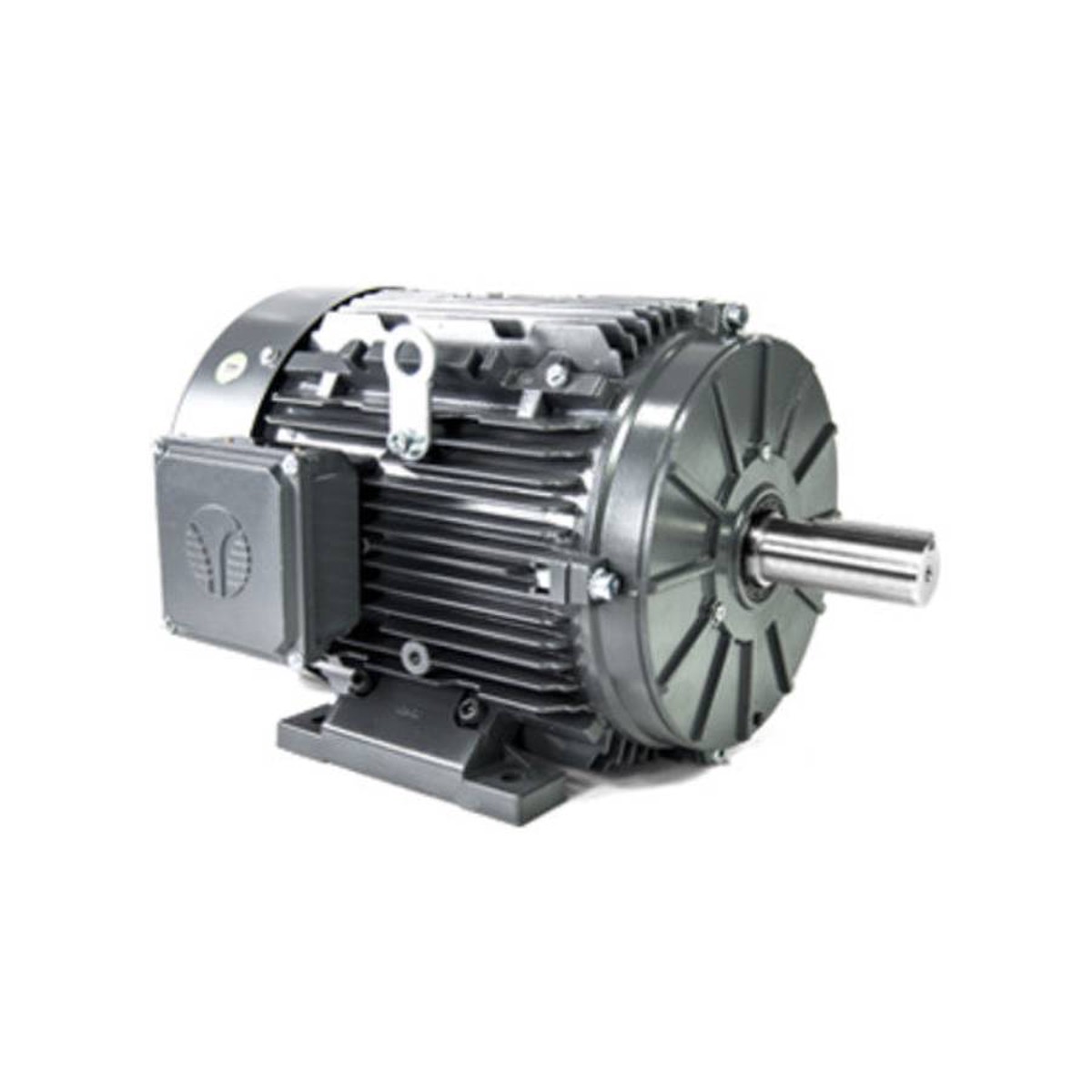

Pictured motor is an example only, product appearance may vary.

Warranty

These three phase aluminum motors come with a 36 month warranty from TechTop that starts from date of purchase.

Features

• NEMA Premium Efficiency Design
• Dual Voltage – Three Phase 230/460V
• 3600/1800/1200 RPM – 2/4/6 Pole
• Inverter Duty – 15:1 Constant Torque (MG1 Part 31)
• Totally Enclosed Fan Cooled IP 55 Protection
• VPI Lap wound Stator with Anti-fungal Coating
• Double Lip Oil Seal on DE & ODE
• Internal Shaft Grounding Brush
• 1.25 SF – 143T and Up
• 50 Hz Capable at 1.0 SF
• 40 C Ambient Temperature Rating
• 1045 Carbon Steel Shaft
• Multi-mount Frame with Removable Feet
• Oversized Drive End Bearing
• One-Way Brass Condensation Drains
• Aluminum Conduit Box 90 Rotatable
• Class F Insulation System with Class H Stator
• F1, F2, F3 Box Position Convertible (Shipped F1)
• Class 1, Division 2, Group C & D Compliant*
• Installation up to 3300 ft Altitude
• Marine Duty Compliant
• 36 Month Warranty from Purchase Date

* Requires removal of internal Grounding Brush. Note requirement on your order.

Specifications

• 3 HP Three Phase Aluminum Electric Motor
• TEFC
• NEMA Premium
• Voltage: 230/460V 60HZ

Available in the following options:

Resources:

• TEFC Aluminum Motors Catalog
